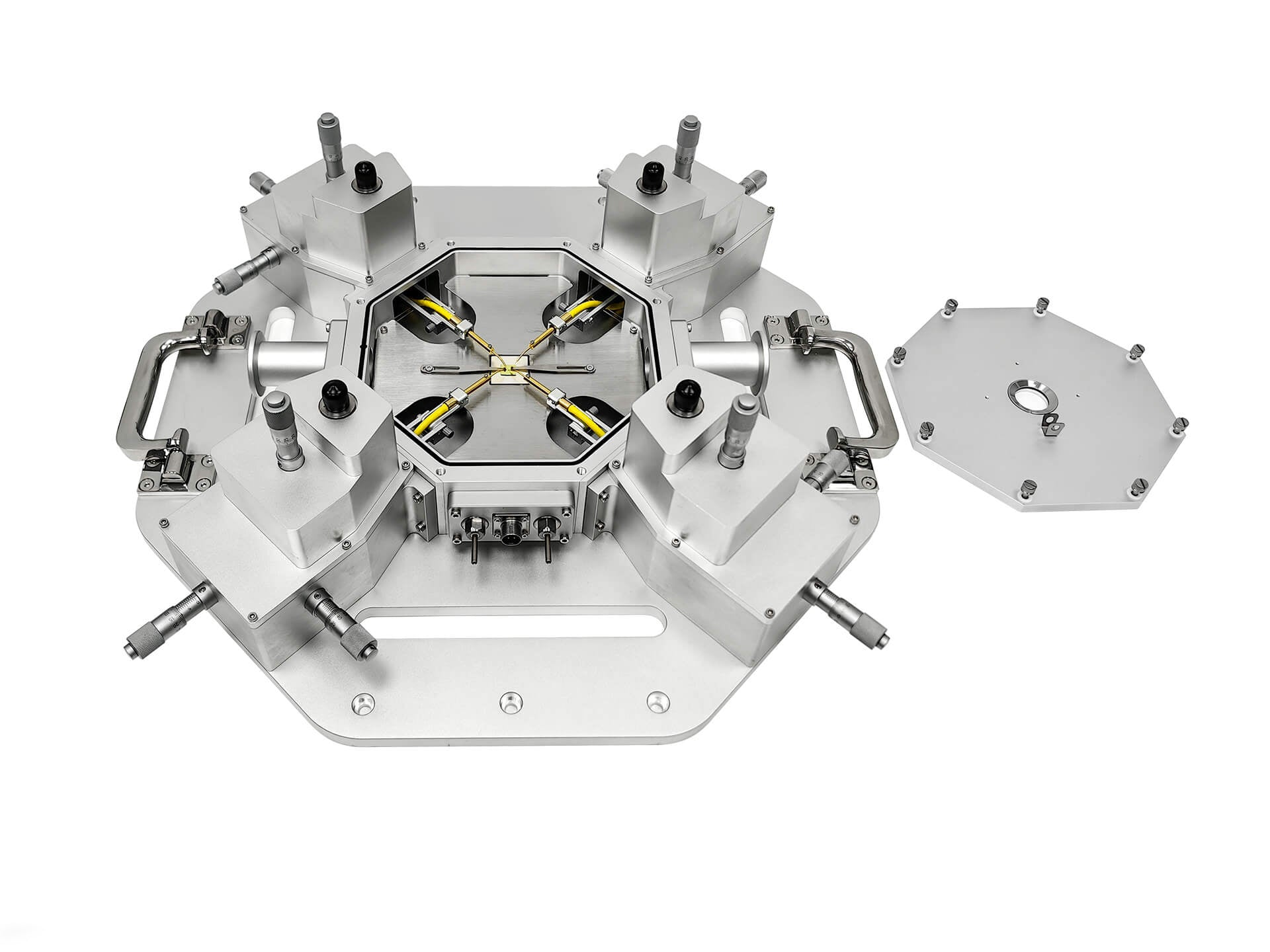

External Adjustment Probe Station GXTECH400V-EM

External Adjustment Probe Station GXTECH400V-EM

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out
Quantity

This series of products features precise temperature control over an ultra-wide range from 4K to 1700℃. Depending on the target temperature and application characteristics, it integrates various cutting-edge temperature control solutions including liquid helium refrigeration, liquid nitrogen refrigeration, thermoelectric refrigeration, resistance heating, infrared heating, and laser heating, providing strong support for complex variable temperature experiments.

GXTECH400V-EM uses a built-in displacement stage, adjusted via a differential head.

 Product Features

  • Temperature range: -190℃~400℃
  • Temperature stability: ±0.1℃
  • XYZ axis travel: ±6mm
  • High-precision temperature control
  • Professional temperature control software
  • Customization available
View full details
  • Product Specification

    Model:GXTECH400V-EM
    1.Cooling / Heating:LiquidNitrogen Cooling, Resistive Heating
    2.Temperature Range:-190°C~400°C
    3.Temperature Stability:+0.1°C
    4.Temperature Control Rate:Max Heating Rate:150°C/min, Max Cooling Rate:40°C/min
    5.Sample Stage:Silver;23mm*23mm
    6.Optical Path:Reflective
    7.Top Window Size:φ25mm*1mm
    8.Bottom Window Size and replaceable:25mm
    9.Window Material:JGS2 Quartz glass (Transmission 220nm~2500nm)
    10.Distance from Window Surface to Sample Stage Surface (h):16.5mm
    11.Sample Chamber Height:20.5mm
    12.Probe:Gold-plated tungsten carbide coaxial probe*4
    13.Probe Interface:XYZ travel range: +6mm
    14.Sample Stage Surface Potential:Grounded / Electrically Floating
    15.Vacuum Chamber Dimensions:436mm*436mm*132mm
    16.Net Weight:13.5kg

  • Configuration List

    Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories

    Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
    PC / Custom temp software, etc
