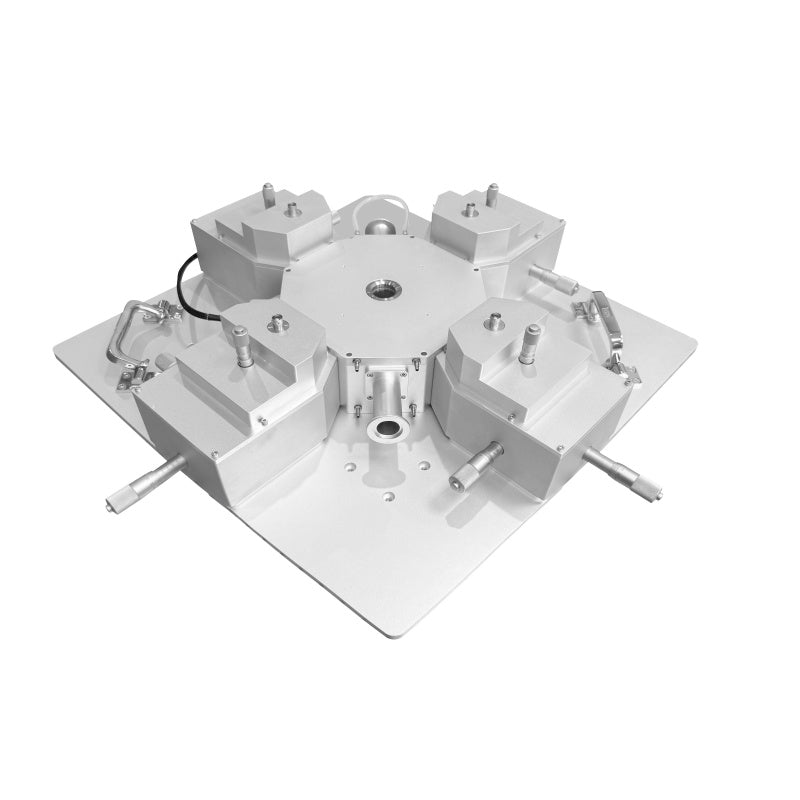

External Adjustment Probe Station GXTEPE1000V-EM
External Adjustment Probe Station GXTEPE1000V-EM
Couldn't load pickup availability
This series of products has the ability to precisely control the temperature within an ultra-wide range from 4K to 1700°C.
According to the target temperature and application characteristics, it integrates a variety of cutting-edge temperature control solutions, including liquid helium refrigeration, liquid nitrogen refrigeration, thermoelectric refrigeration, resistance heating, infrared heating, laser heating, etc., providing strong support for complex variable temperature experiments.
At the same time, multi-language SDKs (such as Labview, C#, etc.) are provided to enable customers to achieve efficient customized integration.
The GXTEH1000V-EM has a temperature range of RT to 1000°C, a temperature stability of ±0.1°C, and can operate stably for a long time under ultra-high temperatures.
Share
-
Product Specification
Model：GXTEPE1000V-EM
1.Cooling / Heating：Resistive Heating
2.Temperature Range：RT~1000℃
3.Temperature Stability：±0.1℃
4.Temp Control Rate：Max Heating Rate：150℃/min, Natural Cooling
5.Sample Stage：Ceramic；20mm*20mm
6.Optical Path：Reflective
7.Top Window Size：φ25mm*1mm
8.Window Material：JGS2 Quartz glass (Transmission 220nm~2500nm), Manually removable and replaceable
9.Distance from Window Surface to Sample Stage Surface (h)：33.5mm
10.Sample Chamber Height：29.5mm
11.Probe：Tungsten - rhenium coaxial probe*4
12.Probe adjustment range：XYZ travel range：±12.5mm
13.Probe Interface：Triple coaxial BNC*4
14.Sample Stage Surface Potential：Grounded / Electrically Floating
15.Chamber：Vacuum
16.Dimensions：520mm520mm145mm
17.Net Weight：22kg
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
