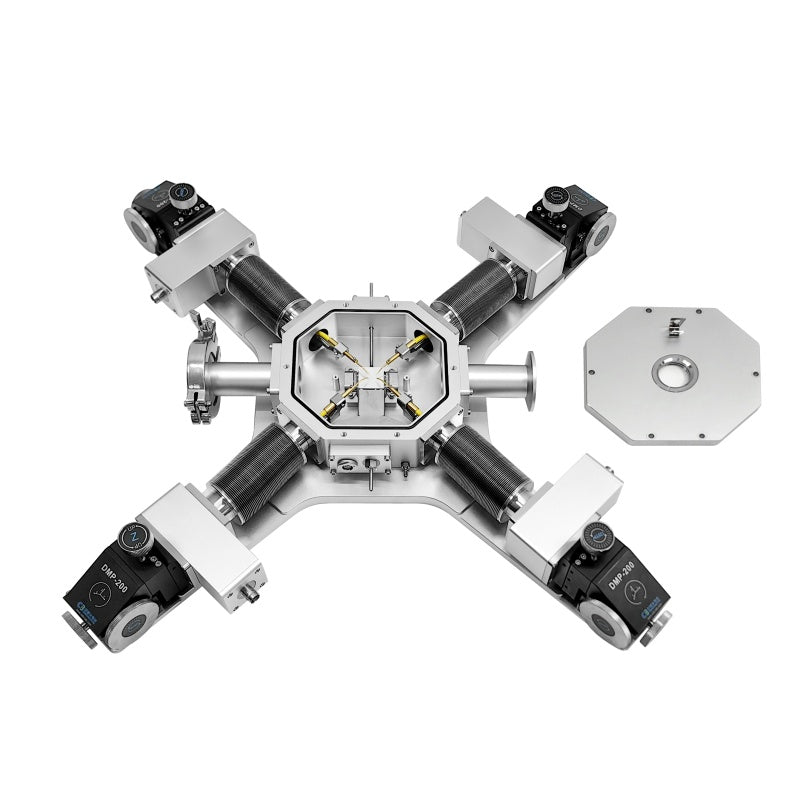

Externally Adjustable Probe Stage-GXTECH400V-EB

Externally Adjustable Probe Stage-GXTECH400V-EB

Regular price $0.00
Regular price Sale price $0.00
Sale Sold out
Quantity

GXTECH400V-EB offers outstanding performance. It features liquid nitrogen cooling & resistive heating, -190℃ to 400℃ range with ±0.1℃ stability. Max 150℃/min heating & 40℃/min cooling rates.

Silver sample stage, reflective optical path, removable JGS2 quartz windows. Equipped with 4 probes, vacuum chamber, compact (430×430×60mm, 10.5kg), ideal for precise thermal - optical experiments.

GXTECH400V-EB uses an external displacement stage and is connected by a bellows.

View full details
  • Product Specification

    Model:GXTECH400V-EB
    1.Cooling / Heating:Liquid Nitrogen Cooling, Resistive Heating
    2.Temperature Range:-190℃~400℃
    3.Temperature Stability:±0.1℃
    4.Temperature Control Rate:Max Heating Rate:150℃/min, Max Cooling Rate:40℃/min
    5.Sample Stage:Silver;23mm*23mm
    6.Optical Path:Reflective
    7.Top Window Size:φ25mm*1mm
    8.Bottom Window Size:JGS2 Quartz glass (Transmission 220nm~2500nm),Manually removable
    9.Window Material:25mm and replaceable 16.5mm
    10.Distance from Window Surface to Sample Stage Surface (h):15mm
    11.Sample Chamber Height:Gold-plated tungsten carbide coaxial probe*4
    12.Probe:XYZ travel range:±6mm
    13.Probe Interface:Triple coaxial BNC*4
    14.Sample Stage Surface Potential:Grounded / Electrically Floating
    15.Chamber:Vacuum
    16.Dimensions:430mm430mm60mm
    17.Net Weight:10.5kg

  • Configuration List

    Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories

    Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
    PC / Custom temp software, etc
