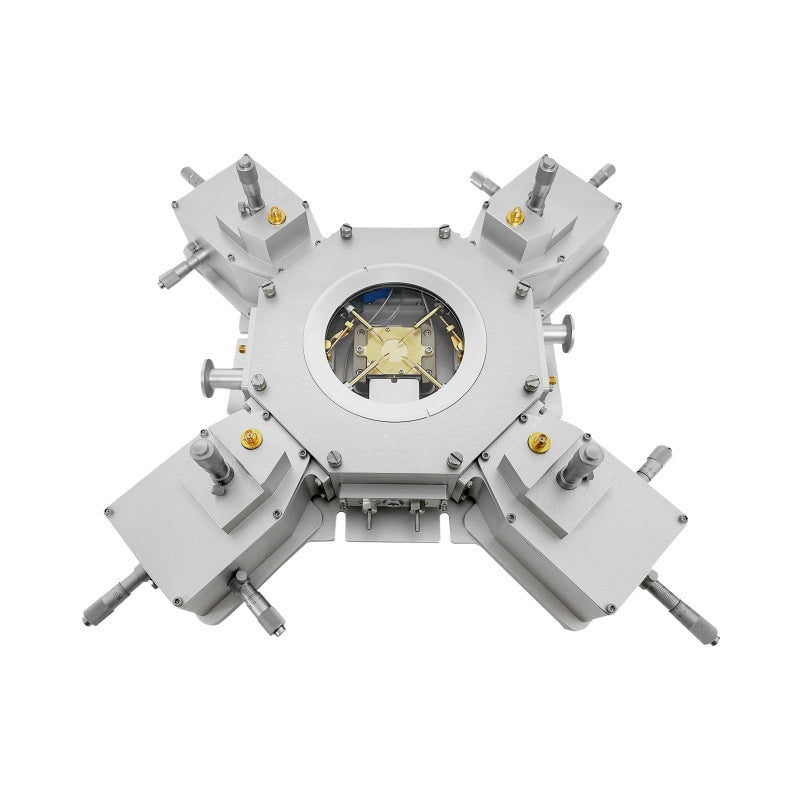

Externally Adjustable Probe Stage GXTEPE120V-EM
Externally Adjustable Probe Stage GXTEPE120V-EM
Couldn't load pickup availability
External Adjustment Probe Station GXTEPE120V-EM is designed for studying the electrical properties of samples under variable temperatures, enabling characterization of electrical performance as a function of temperature.
Product Features:
- Temperature range: -25~120°C (optional liquid nitrogen cooling: -190~400°C)
- Probe adjustment via external translation stage
- Larger XYZ displacement range
- Probe positioning accuracy: 10μm
- More compact size
The product requires a temperature controller for operation. The included PC control software facilitates temperature setting and data acquisition, while provided LabVIEW VIs/C# SDK allows customers to develop customized programs.
Share
-
Product Specification
Model：GXTEPE120V-EM
1.Cooling / Heating：TEC
2.Temperature Range：-25℃~120℃
3.Temperature Stability：±0.1℃
4.Temp Control Rate - Max Heating Rate：30℃/min
5.Sample Stage：Copper；40mm*40mm
6.Optical Path：Reflective
7.Top Window Size：φ100mm*3mm
8.Window Material：JGS2 Quartz glass (Transmission 220nm~2500nm)，Manually removable and replaceable
9.Distance from Window Surface to Sample Stage Surface (h)：14mm
10.Sample Chamber Height：11mm
11.Probe：Gold-plated tungsten carbide coaxial probe*
12.Probe adjustment range：XYZ travel range：±6mm
13.Probe Interface：Triple coaxial BNC*4
14.Sample Stage Surface Potential：Grounded / Electrically Floating
15.Chamber：Vacuum
16.Dimensions：374mm375mm66mm
17.Net Weight：15kg
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
