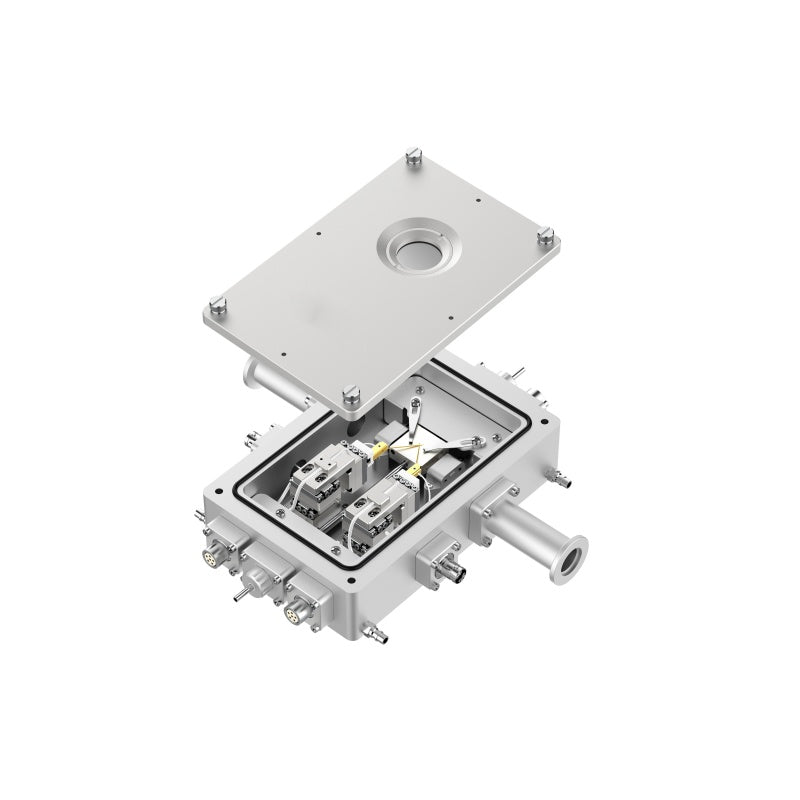

Motorized Adjustment Probe Station GXTECHC400V-EC

Motorized Adjustment Probe Station GXTECHC400V-EC

$0.00
$0.00
Sale Sold out

The temperature range of GXTECHC400V-EC is -190℃~400℃. It adopts an electrically controlled probe holder, which can control the probe position through motorization during the experiment, with a displacement accuracy of 5nm.

Product Features
• Temperature range: -190℃~400℃
• Probe with nanoscale control precision
• Motorized control
• Compact structure
• Suitable for vacuum environment
• High-precision temperature control

View full details

  • Product Specification

    Model：GXTECH400V - EC
    1.Cooling / Heating：LiquidNitrogen Cooling, Resistive Heating
    2.Temperature Range：-190℃ - 400℃
    3.Temperature Stability：+0.1℃
    4.Temp Control Rate：Max Heating Rate:150℃/min, Max Cooling Rate: 40℃/min
    5.Sample Stage：Silver;23mm*23mm
    6.Optical Path：Reflective / Transmissive, (φ2mm Transmission Aperture)
    7.Top Window Size：φ25mm*1mm
    8.Window Material：JGS2 Quartz glass (Transmission 220nm - 2500nm), Manually removable and replaceable
    9.Distance from Window Surface to Sample Stage Surface (h)：12.5mm
    10.Sample Chamber Height：10.5mm
    11.Probe：Motorized probe 2+ gold - plated tungsten carbide probe 2
    12.Probe adjustment range：XYZ travel range: 16mm
    13.Probe Interface：BNC*2
    14.Sample Stage Surface Potential：Grounded / Electrically Floating
    15.Vacuum Chamber Dimensions：110mm170mm45mm
    16.Net Weight：1.5kg

  • Configuration List

    Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories

    Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
    PC / Custom temp software, etc
