Optical hot stage GXTH200-Mini

Optical hot stage GXTH200-Mini

$0.00
$0.00
Sale Sold out

GXTH200-Mini has a temperature range of RT~200℃ and a temperature stability of ±0.1℃; it
adopts a chamberless design, with a mini and compact size, making it easy to use.

Product Features
• Temperature range: RT-200℃
• Temperature stability: ±0.1℃
• Chamber: Exposed

View full details

  • Product Specification

    Model: GXTH200-Mini
    1.Cooling and heating method: Resistance heating
    2.Temperature control range: RT~200℃
    3.Temperature stability: ±0.1℃
    4.Temperature control rate: Maximum heating rate: 150℃/min, natural cooling
    5.Sample stage: Copper; φ20mm*4mm
    6.Optical path: Reflection
    7.Chamber: Exposed

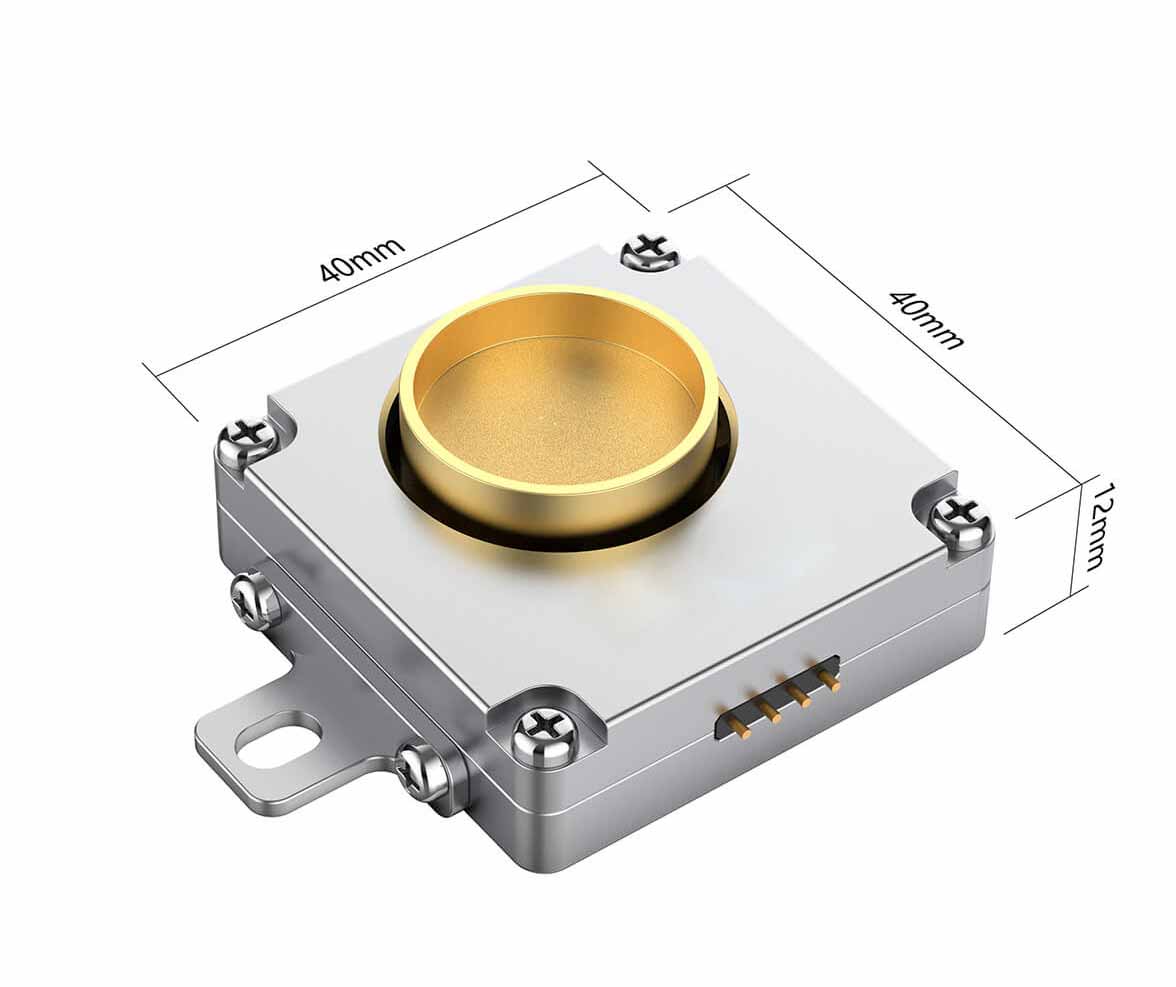

    8.Overall dimensions: 40mm*40mm*12mm
    9.Net weight: 0.2kg
    10.Basic configuration: TCS, optical hot stage *1, temperature controller *1, circulating water machine *1, connecting wires, pipelines, accessories, etc.
    11.Optional: Adapter plate/customized circulating water machine/computer host/customized temperature control software, etc.

  • Configuration List

    Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories

    Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
    PC / Custom temp software, etc
