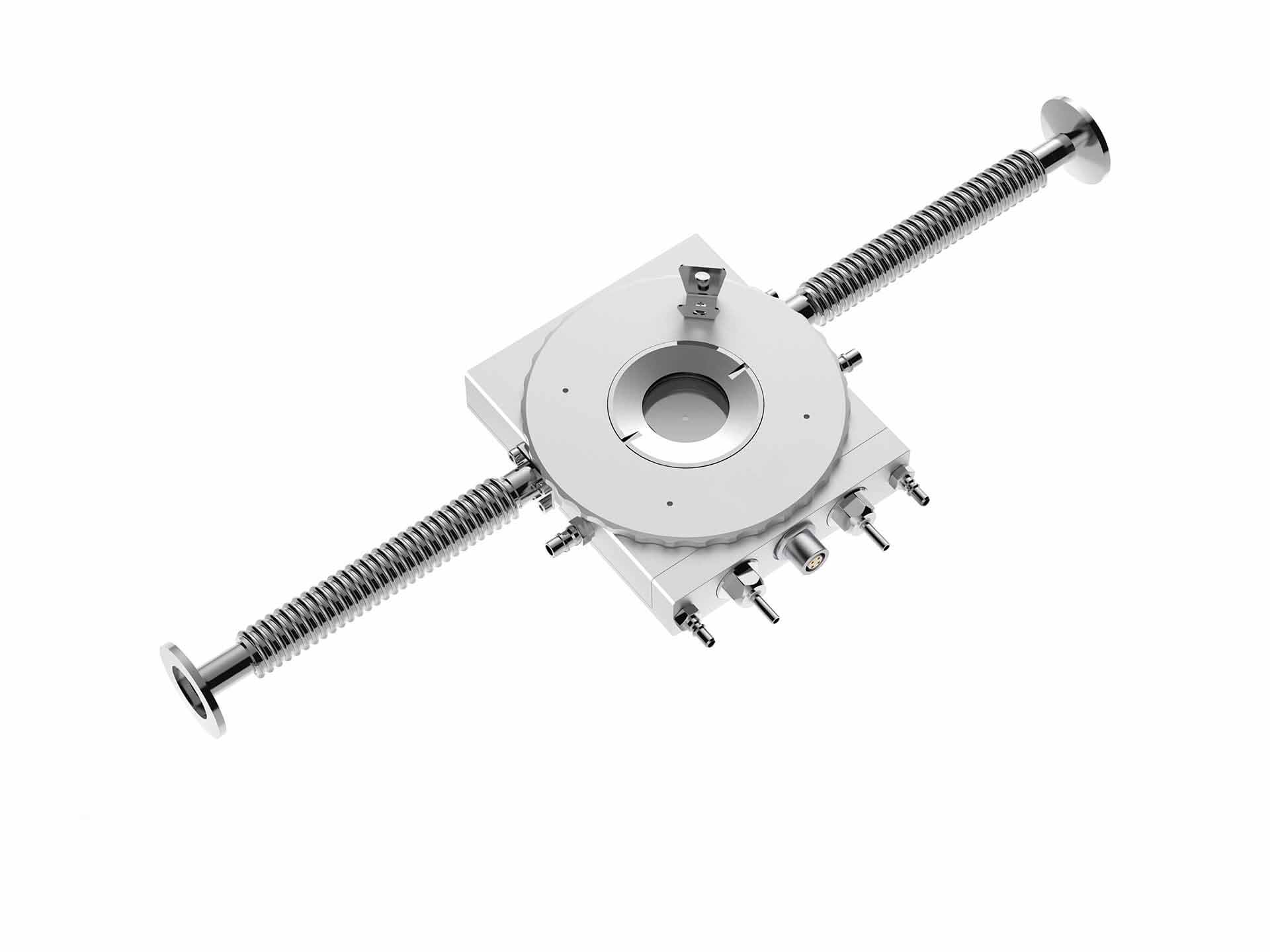

Optical Thermal Stage GXTCH400SV-T
Optical Thermal Stage GXTCH400SV-T
Couldn't load pickup availability
GXTCH400SV-T has a temperature range of -190℃~400℃ and temperature stability of ±0.1℃,capable of achieving precise temperature control in multiple modes: fixed point, slope, and program segment.
The sample stage can be optional for reflection/transmission; the top cover with a screw structure allows for convenient sample loading and unloading.
Product Features
• Temperature range: -190℃~400℃
• Temperature stability: ±0.1℃
• Chamber can be upgraded to vacuum
• High-precision temperature control
• Professional temperature control software
• Customization supported
Share
-
Product Specification
Model: GXTCH400SV-T
1.Cooling / Heating: Liquid Nitrogen Cooling, Resistive Heating
2.Temperature Range: -190°C~400°C
3.Temperature Stability: +0.1°C
4.Temperature Control Rate: Max Heating Rate: 150°C/min, Max Cooling Rate: 40°C/min
5.Sample Stage: Silver;23mm*23mm
6.Optical Path: Reflective / Transmissive, φ2mm Transmission Aperture
7.Top Window Size: φ25mm*1mm
8.Bottom Window Size: φ10mm*0.5mm (optional for transmissive path)
9.Window Material: JGS2 Quartz glass (Transmission 220nm~2500nm), removable and replaceable
10.Window Defrosting: Equipped with a gas purge bracket for defrosting using LN2 exhaust at low temperature
11.Distance from Window Surface to Sample Stage Surface (h): 4.8mm
12.Sample Chamber Height: 3.8mm
13.Chamber: Air-tight ChamberVacuum
14.Dimensions: 86mm* 100mm*21.5mm (Excluding bellows)
15.Net Weight: 0.6kg
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
