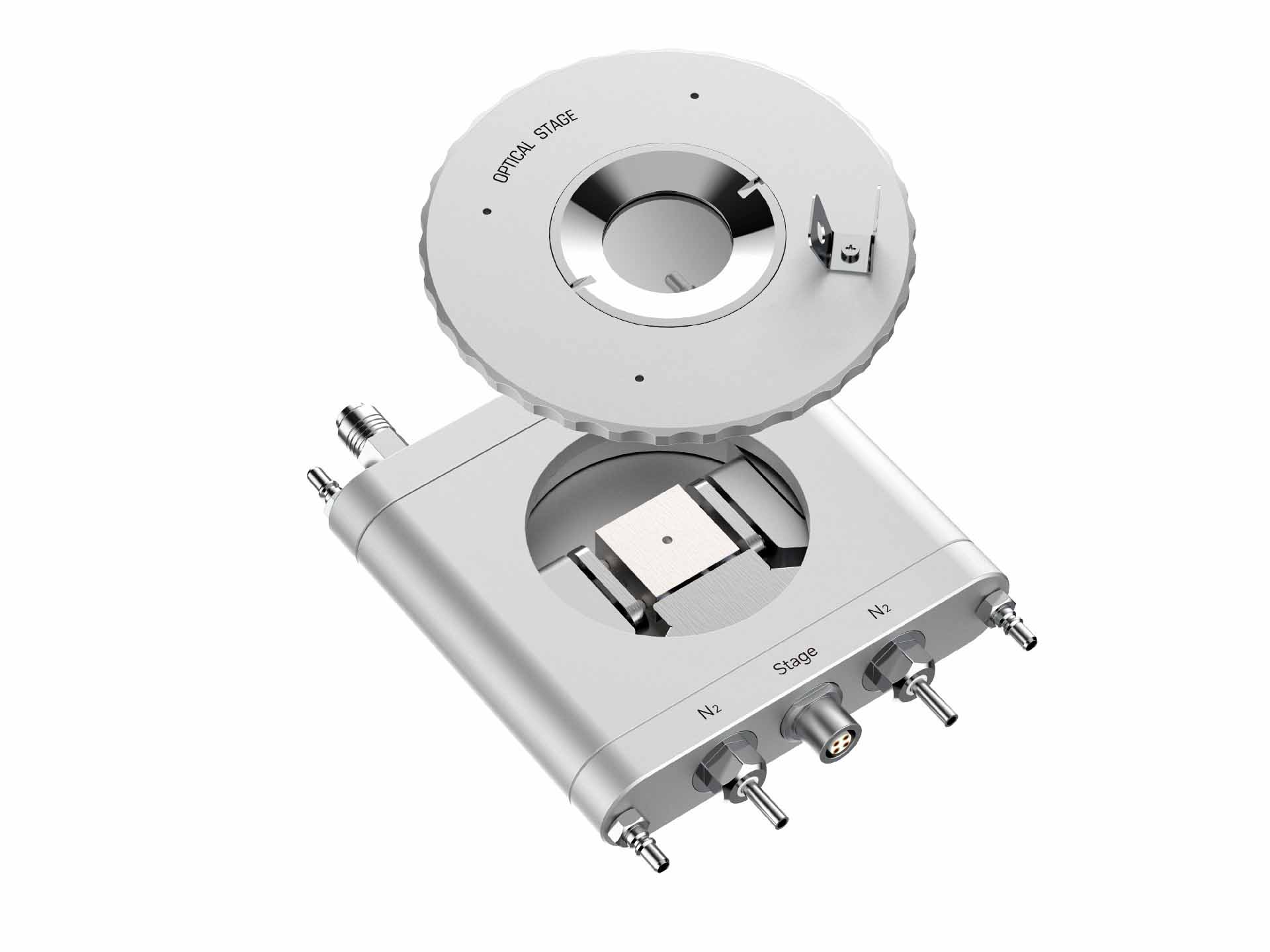

Optical Thermal Stage GXTCH600S
Optical Thermal Stage GXTCH600S
Couldn't load pickup availability
GXTCH600S has a temperature range of -190℃~600℃ and temperature stability of ±0.1℃,
capable of achieving precise temperature control in multiple modes: fixed point, slope, and
program segment.
The sample stage can be optional for reflection/transmission; the top cover with a screw
structure allows for convenient sample loading and unloading; the body is light and thin, suitable for various brands and models of optical instruments.
Product Features
• Temperature range: -190℃~600℃
• Temperature stability: ±0.1℃
• Reflection/transmission modes supported
• Chamber can be upgraded to vacuum
• High-precision temperature control
• Professional temperature control software
• Customization supported
Share
-
Product Specification
Model: GXTCH600S
1.Cooling / Heating：Liquid Nitrogen Cooling, Resistive Heating
2.Temperature Range：-190°C~600°C
3.Temperature Stability：+0.1°C
4.Temperature Control Rate：Max Heating Rate: 150°C/min, Max Cooling Rate: 40°C/min
5.Sample Stage：Silver;23mm*23mm
6.Optical Path：Reflective / Transmissive, $2mmTransmission Aperture)
7.Top Window Size：$25mm*1mm
8.Bottom Window Size：$10mm*1mm (optional for transmissive path)
9.Window Material：JGS2 Quartz glass (Transmission 220nm-2500nm), Manually removable and replaceable
10.Window Defrosting：Equipped with a gas purge bracket for defrosting using LN2 exhaust at low temperature
11.Distance from Window Surface to Sample Stage Surface (h)：4.5mm
12.Sample Chamber Height：3.5MM
13.Chamber：Air-tight Chamber
14.Dimensions：91mm*97mm*24mm
15.Net Weight：0.5kg
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
