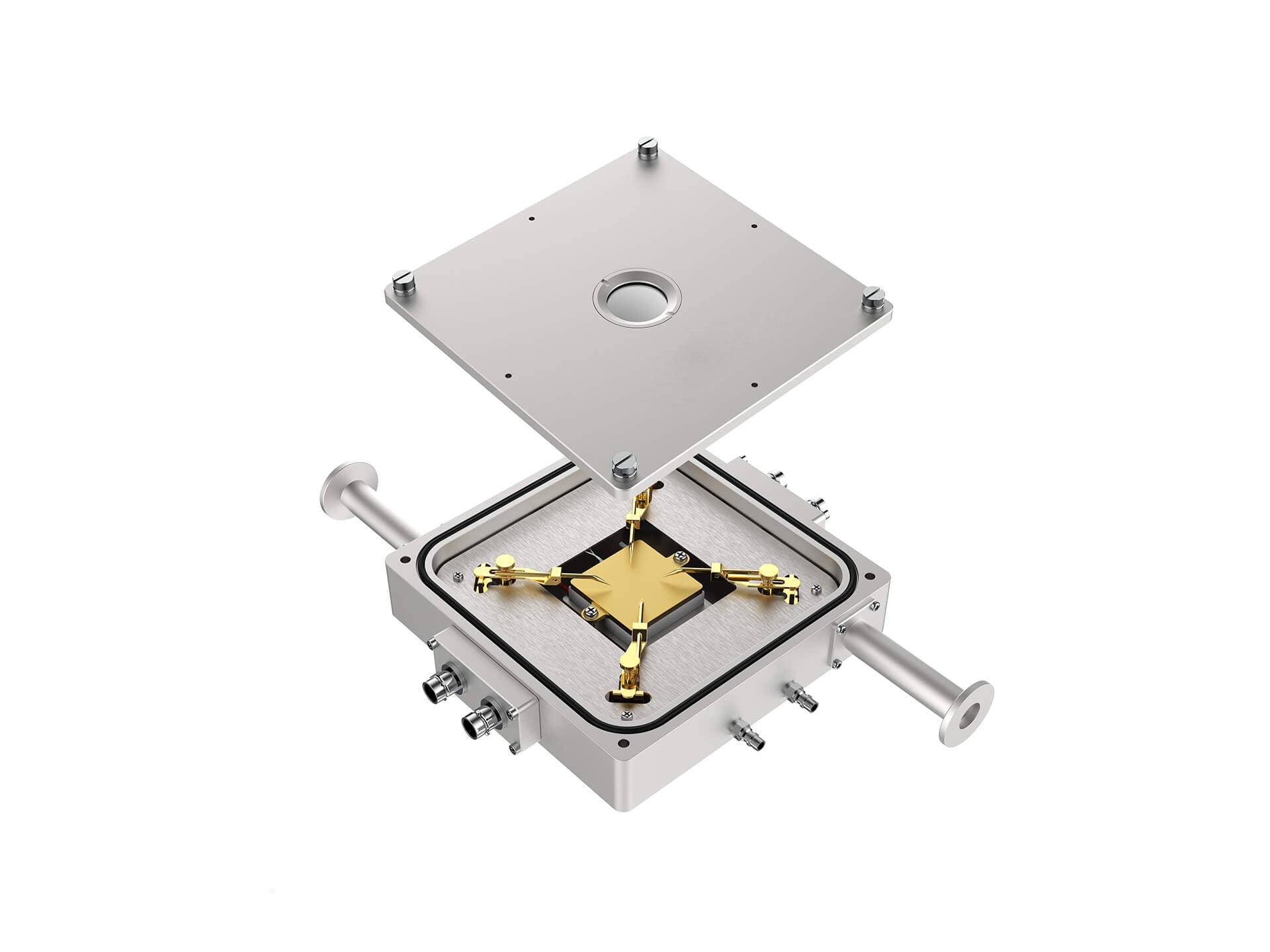

Peltier Probe Thermal-Cold Stage GXTEPE120V
Peltier Probe Thermal-Cold Stage GXTEPE120V
Couldn't load pickup availability
GXTEPE120V has a temperature range of -25℃~120℃ with a temperature stability of ±0.1℃. It can achieve precise temperature control in multiple modes: fixed-point, slope, and program segments.
The sample stage can be selected for reflection/transmission; sample loading and unloading are convenient; it uses fixed probes, compatible with various optical instruments and electrical meters.
Product Features
- Cooling and heating method: TEC
- Temperature range: -25℃~120℃
- Temperature stability: ±0.1℃
- Chamber can be upgraded to vacuum
- High-precision temperature control
- Professional temperature control software
- Customization available
Share
-
Product Specification
Model：GXTEPE120V
1.Temperature Range：-25°C~120°C
2.Temperature Stability：±0.1°C
3.Temperature Control Rate：Max Heating Rate:30°C/min, Max Cooling Rate:30°C/min
4.Sample Stage：Copper;40mm*40mm
5.Optical Path：Reflective / Transmissive, (ф2mm Transmission Aperture)
6.Top Window Size：φ25mm*1mm
7.Bottom Window Size：φ10mm*1mm(optional for transmissive path)
8.Window Material：JGS2 Quartz glass (Transmission 220nm), Manually removable and replaceable
9.Window Defrosting：Equipped with a gas purge bracket
10.Distance from Window Surface to Sample Stage Surface (h)：6mm
11.Sample Chamber Height：5mm
12.Probe：Fixed probe*4+Gold-plated copper probes *4
13.Probe Interface：BNC*4
14.Sample Stage Surface Potential：Grounded / Electrically Floating
15.Vacuum Chamber：Vacuum
16.Dimensions：91mm*97mm*24mm（Excluding bellows）
17.Net Weight：0.6kg
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
