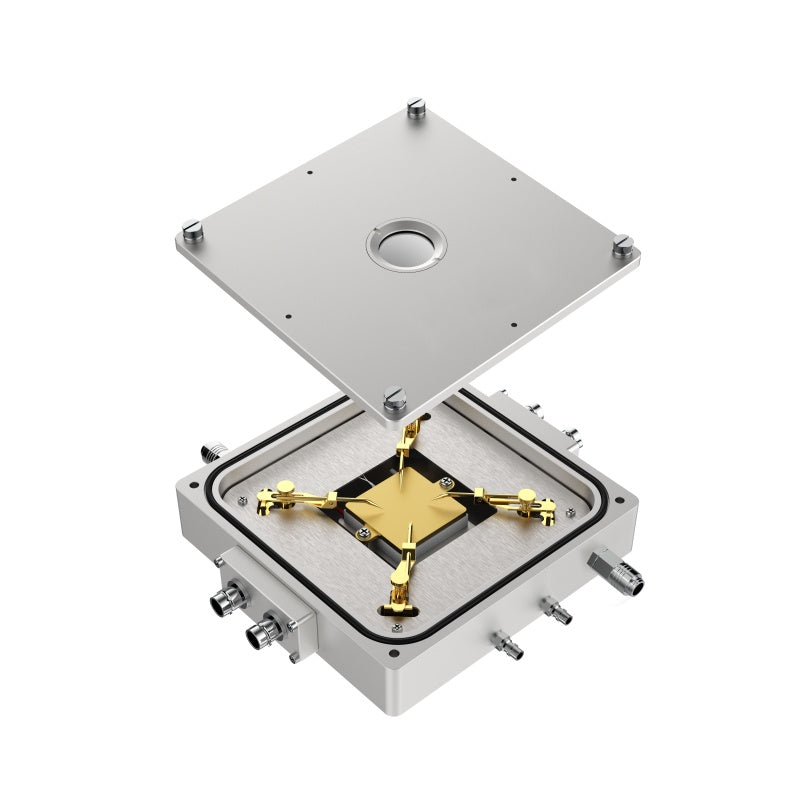

Peltier Probe Thermal Stage GXTEPE120

Peltier Probe Thermal Stage GXTEPE120

$0.00
$0.00
Sale Sold out
The temperature range of GXTEPE120 is -25℃~120℃, with a temperature stability of ±0.1℃. It can achieve precise temperature control in multiple modes such as fixed-point, slope, and program segment.
The sample stage can be optional for reflection/transmission; sample loading and unloading are convenient; it adopts fixed probes, which are compatible with various optical instruments and electrical meters.

Product Features

  • Cooling/Heating Method: TEC
  • Temperature Range: -25℃~120℃
  • Temperature Stability: ±0.1℃
  • The chamber can be upgraded to vacuum
  • High-precision temperature control
  • Professional temperature control software
  • Customization supported
View full details

  • Product Specification

    Model：GXTEPE120
    1.Cooling / Heating：TEC
    2.Temperature Range：-25℃~120℃
    3.Temperature Stability：±0.1℃
    4.Temperature Control Rate：Max Heating Rate: 30℃/min，Max Cooling Rate: 30℃/min
    5.Sample Stage：Copper；40mm*40mm
    6.Optical Path：Reflective / Transmissive, (φ2mm Transmission Aperture）
    7.Top Window Size：φ25mm*1mm
    8.Bottom Window Size：φ10mm*1mm（optional for transmissive path）
    9.Window Material：JGS2 Quartz glass (Transmission 220nm~2500nm)，Manually removable and replaceable
    10.Window Defrosting：Equipped with a gas purge bracket
    11.Distance from Window Surface to Sample Stage Surface (h)：6mm
    12.Sample Chamber Height：5mm
    13.Probe：Fixed probe4+Gold-plated copper probes4
    14.Probe Interface：BNC*4
    15.Sample Stage Surface Potential：Grounded / Electrically Floating
    16.Chamber：Air-tight
    17.Dimensions：91mm97mm24mm
    18.Net Weight：0.5kg

  • Configuration List

    Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories

    Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
    PC / Custom temp software, etc
