Probe Hot Stage GXTECH600S
Probe Hot Stage GXTECH600S
Couldn't load pickup availability
The temperature range of GXTECH600S is -190℃ to 600℃, with a temperature stability of ±0.1°C. It can achieve precise temperature control in multiple modes such as fixed - point, slope, and program segments.

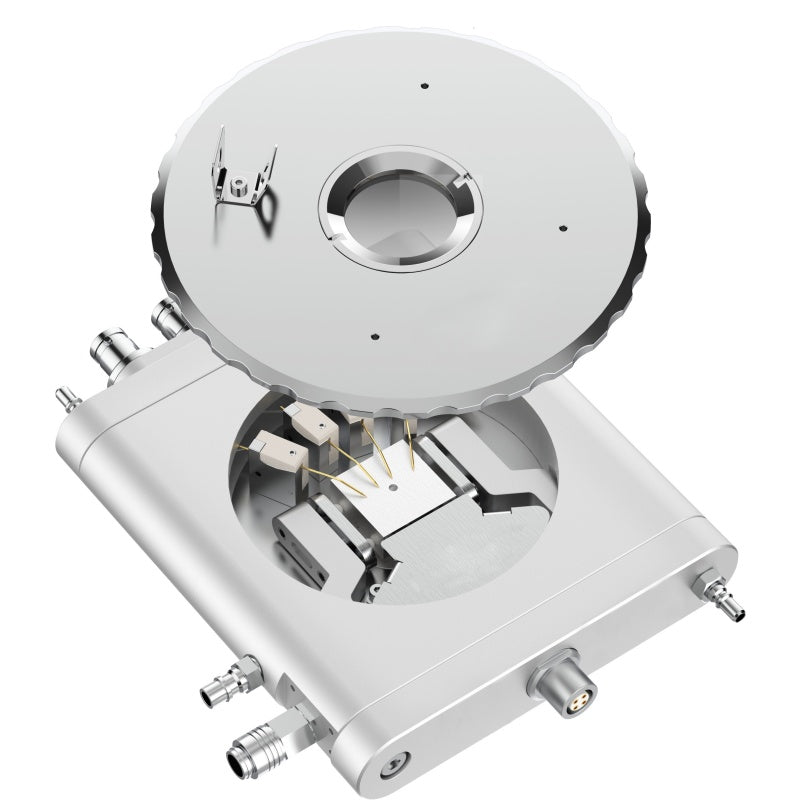

The sample stage can be selected for reflection or transmission. The upper cover has a screwing structure, which makes it convenient to load and unload samples. The magnetic - type probe can move flexibly and is suitable for various optical instruments and electrical meters.
Product Features
• Temperature range: -190℃ ~ 600℃
• Temperature stability: ±0.1℃
• Supports reflection/transmission mode
• The chamber can be upgraded to a vacuum
• High-precision temperature control
• Professional temperature control software
• Supports customization
Share
-
Product Specification
Model：GXTECH600S
1.Cooling / Heating：Liquid Nitrogen Cooling, Resistive Heating
2.Temperature Range：-190℃~600℃
3.Temperature Stability：±0.1℃
4.Temperature Control Rate：Max Heating Rate：150℃/min，Max Cooling Rate：40℃/min
5.Sample Stage：Silver；23mm*23mm
6.Optical Path：Reflective / Transmissive, φ2mm Transmission Aperture
7.Top Window Size：φ25mm*1mm
8.Bottom Window Size：φ10mm*1mm（optional for transmissive path）
9.Window Material：JGS2 Quartz glass (Transmission 220nm~2500nm)，Manually removable and replaceable
10.Window Defrosting：Equipped with a gas purge bracket for defrosting using LN2 exhaust at low temperatures
11.Distance from Window Surface to Sample Stage Surface (h)：7mm
12.Sample Chamber Height：6mm
13.Probe：Magnetic probe4 + gold-plated tungsten carbide probes4
14.Probe Interface：BNC*4
15.Sample Stage Surface Potential：Grounded / Electrically Floating
16.Chamber：Air-tight
17.Dimensions：91mm97mm24mm
18.Net Weight：0.5kg
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
