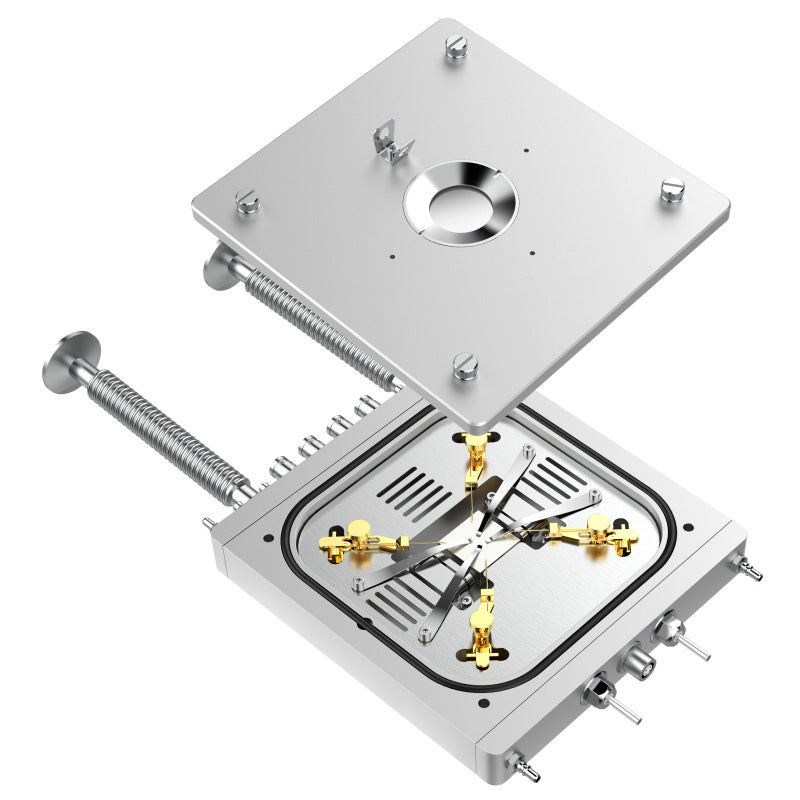

Probe Thermal Stage GXTECH400V
Probe Thermal Stage GXTECH400V
Couldn't load pickup availability
The temperature range of GXTECH400V is -190°C~400°C, with a temperature stability of ±0.1°C. It can achieve precise temperature control in multiple modes such as fixed-point, slope, and program segment. The sample stage can be optional for reflection/transmission; it adopts fixed probes, which are compatible with various optical instruments and electrical meters.
Product Features
- Temperature range: -190℃~400℃
- Temperature stability: ±0.1℃
- Temperature control rate: maximum heating rate of 150℃/min, maximum cooling rate of 40℃/min
- The chamber can be upgraded to vacuum
- High-precision temperature control • Customization supported
Share
-
Product Specification
Model：GXTECH400V
1.Cooling / Heating：LiquidNitrogen Cooling, Resistive Heating
2.Temperature Range：-190℃~400℃
3.Temperature Stability：±0.1℃
4.Temperature Control Rate：Max Heating Rate：150℃/min，Max Cooling Rate：40℃/min
5.Sample Stage：Silver；23mm*23mm
6.Optical Path：Reflective / Transmissive, φ2mmTransmission Aperture ）
7.Top Window Size：φ25mm*1mm
8.Bottom Window Size：φ10mm*1mm (optional for transmissive path）
9.Window Material：JGS2 Quartz glass ( Transmission 220nm~2500nm)，Maunally removable
10.Window Defrosting：Equipped with a gas purge bracket for defrosting using LN2 exhaust at low temperatures
11.Distance from Window Surface to Sample Stage Surface (h)：7mm
12.Sample Chamber Height：6mm
13.Probe：Magnetic probe*4+gold-plated tungsten carbide probes *4
14.Probe Interface：BNC*4
15.Sample Stage Surface Potential：Grounded / Electrically Floating
16.Chamber：Vacuum
17.Dimensions：160mm*150mm*30mm（Excluding Bellows）
18.Net Weight：1.6kg
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
