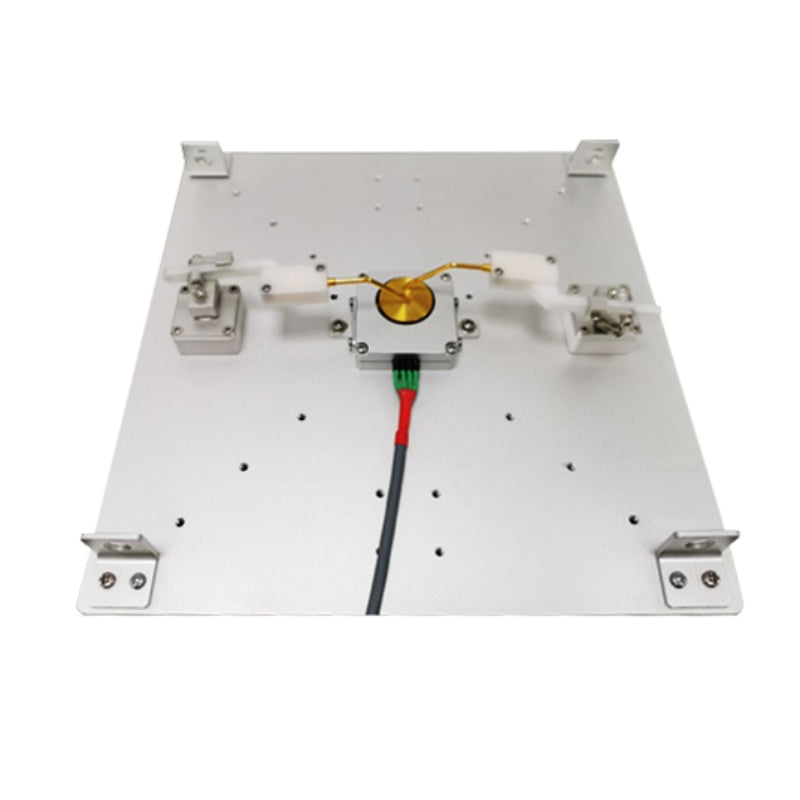

Probe Thermal Stage GXTEH200-Mini

Probe Thermal Stage GXTEH200-Mini

$0.00
$0.00
Sale Sold out
The temperature range of GXTEH200-Mini is RT~200℃. The groove-type sample stage is specially designed for oil bath environments and is suitable for immersion oil bath testing.
Product Features
• Temperature Range: RT~200℃
• Temperature Stability: ±0.1℃
• Chamber: Exposed
• High-precision temperature control
View full details

  • Product Specification

    Model：GXTEH200-Mini
    1.Cooling / Heating：Resistive Heating
    2.Temperature Range：RT~200℃
    3.Temperature Stability：±0.1℃
    4.Temperature Control Rate：Max Heating Rate：150℃/min, Natural Cooling
    5.Sample Stage：Copper；φ20mm*4mm
    6.Probe：High-voltage probe ×2 + gold- plated copper probe ×2
    7.Probe Interface：BNC*2
    8.Sample Stage Surface Potential：Grounded / Electrically Floating
    9.Chamber：Open
    10.Dimensions：220mm220mm20mm
    11.Net Weight：0.5kg

  • Configuration List

    Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories

    Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
    PC / Custom temp software, etc
