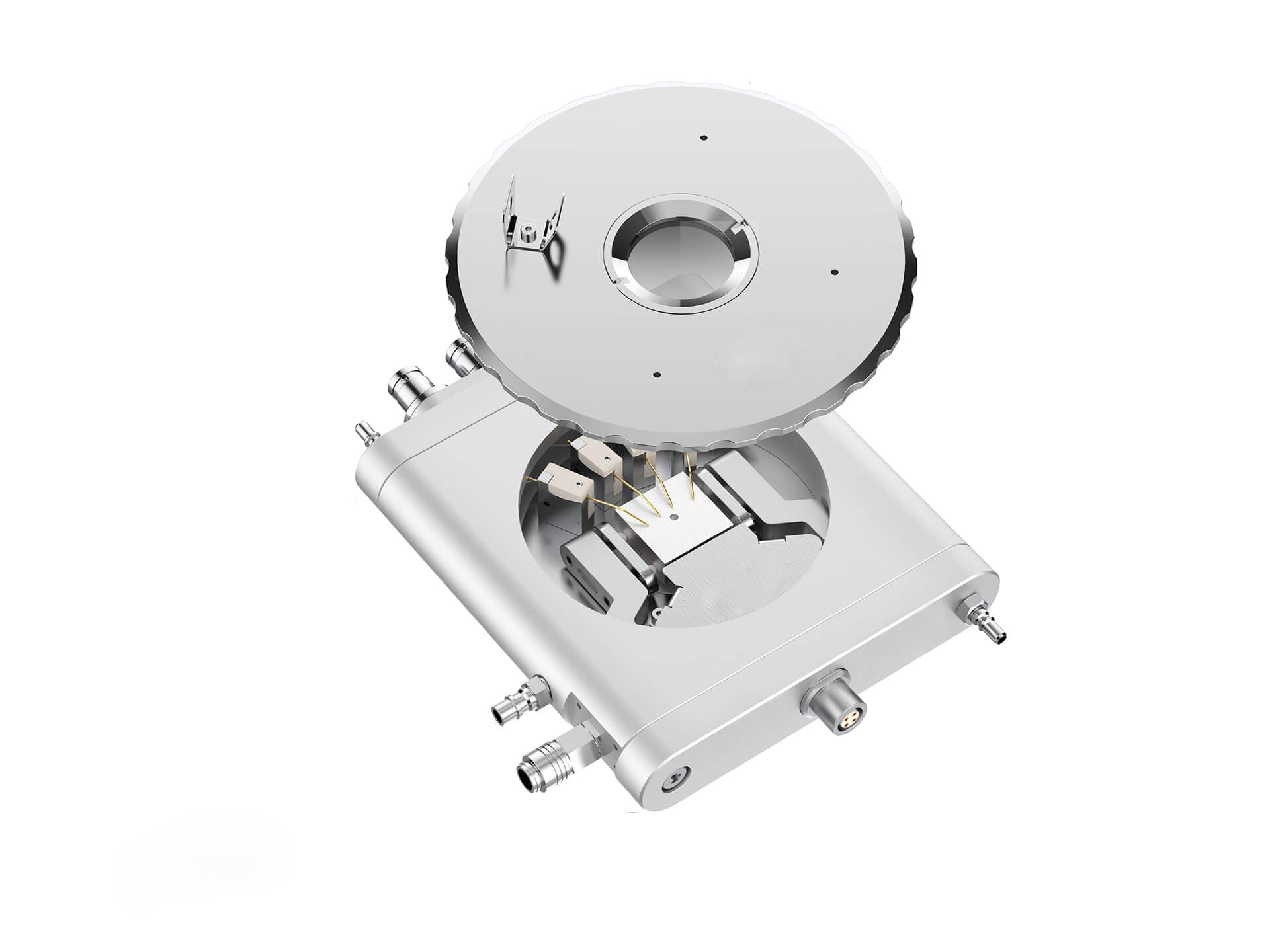

Probe Thermal Stage GXTEH600S
Probe Thermal Stage GXTEH600S
Couldn't load pickup availability
GXTEH800S has a temperature range of RT~600℃ with a temperature stability of ±0.1℃, and can operate stably for a long time at high temperatures.
Product Features
- Temperature range: RT~600℃
- Temperature stability: ±0.1℃
- Support for reflection/transmission modes
- High-precision temperature control
- Professional temperature control software
- Customization available
Share
-
Product Specification
Model：GXTEH600S
1.Cooling / Heating：Resistive Heating
2.Temperature Range：RT~600°C
3.Temperature Stability：±0.1°C
4.Temperature Control Rate：Max Heating Rate: 150°C/min, Natural Cooling
5.Sample Stage：Stainless Steel;23mm*23mm
6.Optical Path：Reflective / Transmissive (ф2mm Transmission Aperture)
7.Top Window Size：$25mm*1mm
8.Bottom Window Size：$10mm*1mm (optional for transmissive path)
9.Window Material：JGS2 Quartz glass (Transmission 220nm-2500nm), Manually removable and replaceable
10.Distance from Window Surface to Sample Stage Surface (h)：7mm
11.Sample Chamber Height：6mm
12.Probe：Magnetic probe x4+ gold-plated tungsten carbide probes x4
13.Probe Interface：BNC*4
14.Sample Stage Surface Potential：Grounded / Electrically Floating
15.Chamber：Air-tight
16.Dimensions：91mm*97mm*24mm
17.Net Weight：0.6kg
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
