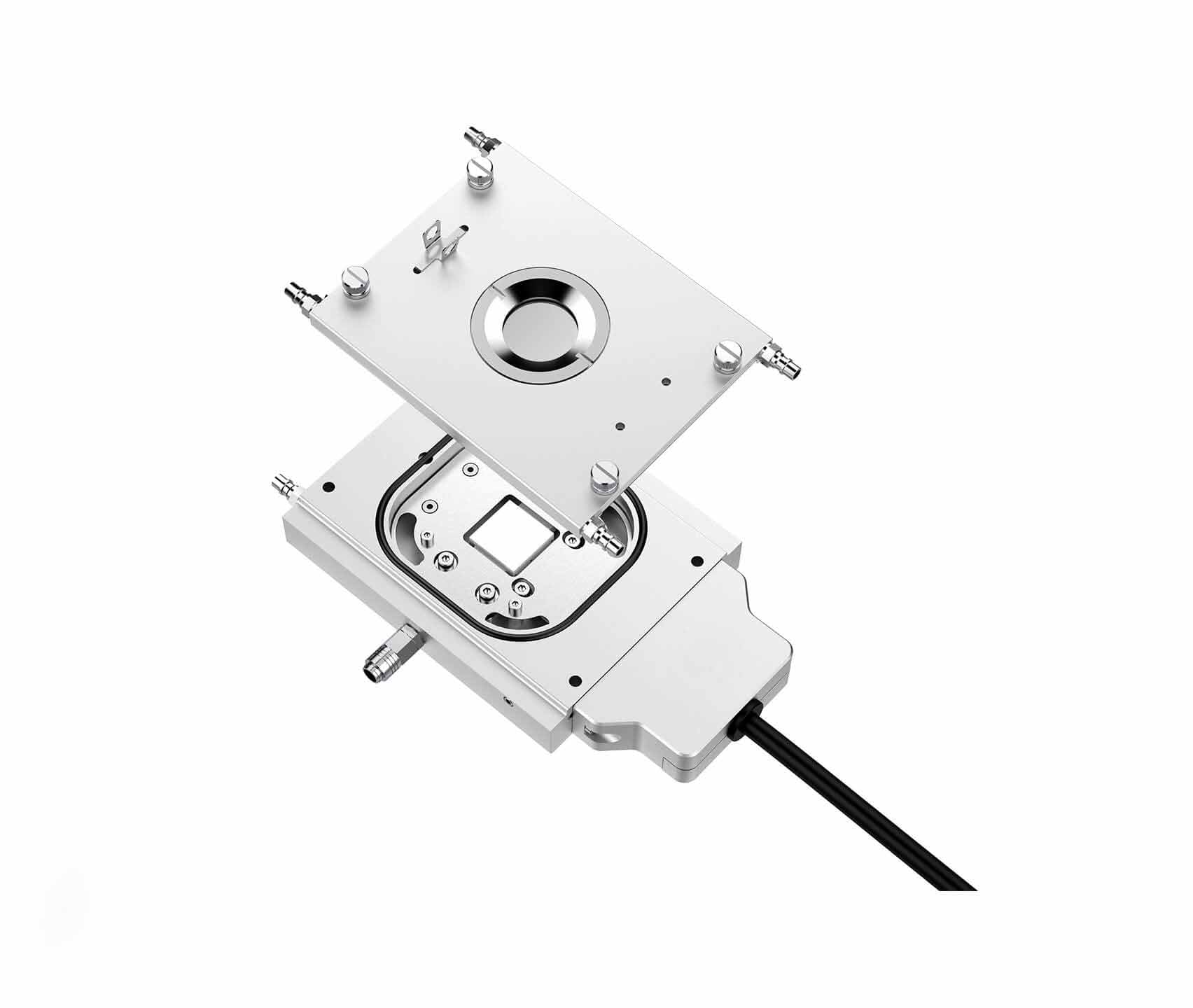

Ultra-high temperature hot stage GXTH1200
Ultra-high temperature hot stage GXTH1200
Couldn't load pickup availability
GXTH1200 temperature range: RT~1200℃; planar sample stage, reflection optical path; top cover equipped with circulating water protection.
Product Features
• Temperature range: RT~1200℃
• Temperature stability: ±0.1℃
• Reflection support
• High-precision temperature control
• Professional temperature control software
• Customization support
Share
-
Product Specification
Model: GXTH1200
1.Heating/Cooling Method: Resistive heating
2.Temperature Control Range: RT (Room Temperature) ~ 1200℃
3.Temperature Stability: ±0.1℃
4.Temperature Control Rate: Maximum heating rate: 50℃/min, natural cooling
5.Sample Stage: Ceramic; 20mm*20mm
6.Optical Path: Reflection
7.Upper Viewport Size: φ25mm*1mm (diameter 25mm * thickness 1mm)
8.Viewport Material: JGS2 quartz glass (transmission wavelength range: 220nm ~ 2500nm), manually detachable and replaceable
9.Distance (h) from Upper Surface of Viewport to Upper Surface of Sample Stage: 7mm
10.Sample Chamber Height: 6mm
11.Chamber Type: Atmosphere-controlled chamber
12.External Dimensions: 95mm*160mm*24mm
13.Net Weight: 0.8kg
14.Basic Configuration: TCS, optical ultra-high temperature hot stage *1, temperature controller *1, circulating water chiller *1, connecting wires, pipelines, accessories, etc.
15.Optional Accessories: Adapter plate / custom circulating water chiller / computer host / custom temperature control software, etc.
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
