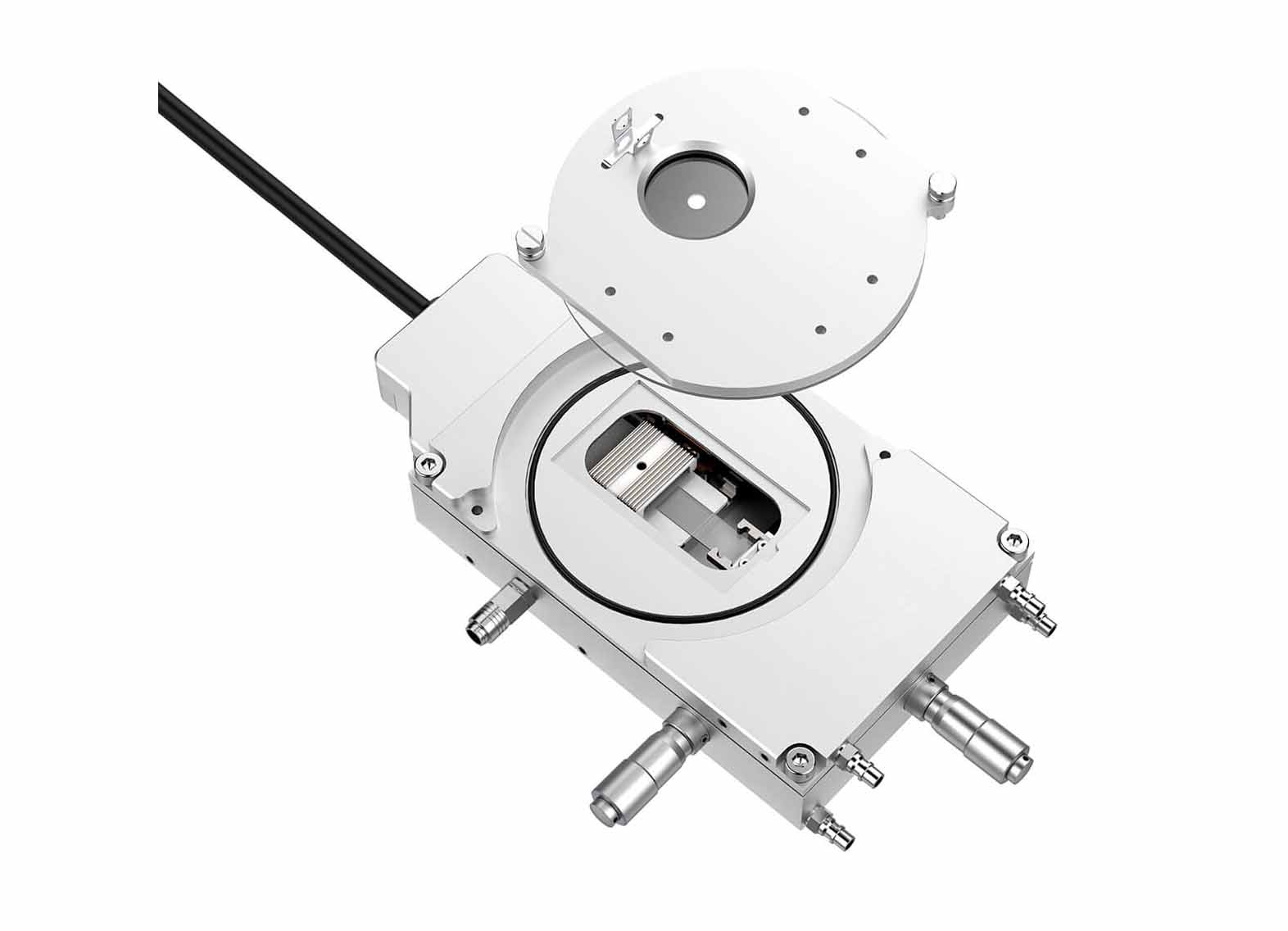

Ultra-high temperature hot stage GXTH1400-RG-XY
Ultra-high temperature hot stage GXTH1400-RG-XY
Couldn't load pickup availability
GXTH1400-RG-XY temperature range RT~1400℃; tunnel-type sample stage; the sample is movable, with X/Y axis
displacement distance of ±6mm/±5mm.
Product Features
• Temperature range: RT~1400℃
• Temperature stability: ±0.1℃
• Sample displacement: Precise displacement of the sample in X-axis ±6mm and Y-axis ±5mm can be
achieved
• Compatible design: Designed specifically for optical observation, can be used in conjunction with optical
microscopes, Raman and other equipment
• High-precision temperature control
• Professional temperature control software
• Customization support
Share
-
Product Specification
Model: GXTH1400-RG-XY
1.Heating/Cooling Method: Resistive heating
2.Temperature Control Range: RT (Room Temperature) ~ 1400℃
3.Temperature Stability: ±0.1℃
4.Temperature Control Rate: Maximum heating rate: 150℃/min, natural cooling
5.Sample Stage: Ceramic; through groove with 20mm4mm20mm (widthheightdepth)
6.Optical Path: Reflection
7.Upper Viewport Size: φ3mm*2mm (diameter 3mm * thickness 2mm)
8.Viewport Material: JGS2 quartz glass (transmission wavelength range: 220nm ~ 2500nm), manually detachable and replaceable
9.Distance (h) from Upper Surface of Viewport to Upper Surface of Sample Stage: 11.6mm
10.Sample Chamber Height: 4mm
11.Sample Displacement: X/Y axis displacement distance: ±6mm/±5mm, displacement accuracy: 0.01mm
12.Chamber Type: Atmosphere-controlled chamber
13.External Dimensions: 190mm*100mm*31.5mm
14.Net Weight: 1.1kg
15.Basic Configuration: TCS, optical ultra-high temperature hot stage *1, temperature controller *1, circulating water chiller *1, connecting wires, pipelines, accessories, etc.
16.Optional Accessories: Adapter plate / custom circulating water chiller / computer host / custom temperature control software, etc.
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
