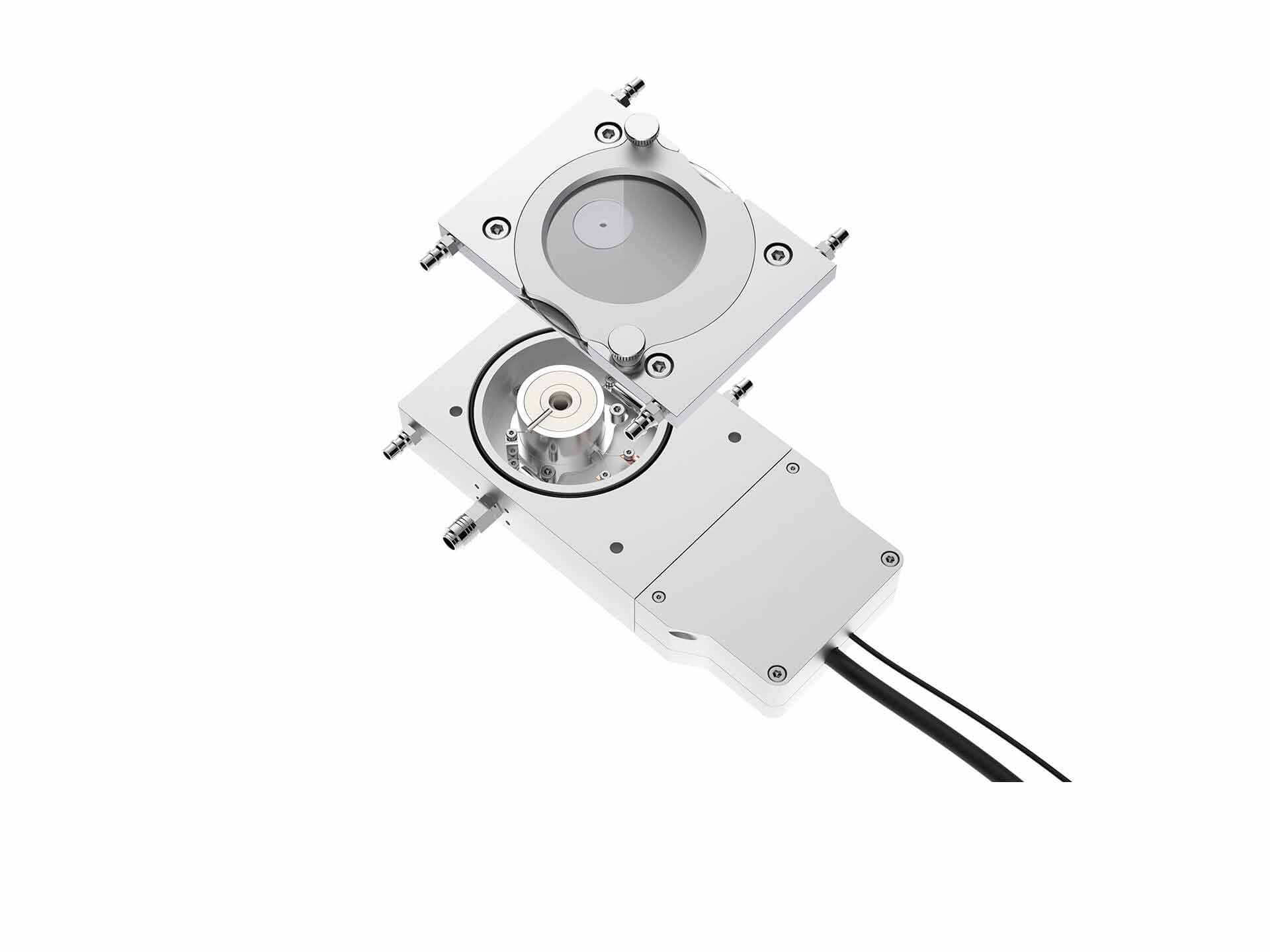

Ultra-high temperature hot stage GXTH1500-RG

Model: GXTH1500-RG
1. Heating/Cooling Method: Resistive heating
2. Temperature Control Range: RT (Room Temperature) ~ 1500℃
3. Temperature Stability: ±0.1℃
4. Temperature Control Rate: Maximum heating rate: 150℃/min, natural cooling
5. Sample Stage: Ceramic; circular groove with φ8mm*2mm (diameter 8mm * thickness 2mm)
6. Optical Path: Transmission (φ5mm light-transmitting hole)
7. Upper Viewport Size: φ3mm*1.5mm (diameter 3mm * thickness 1.5mm)
8. Lower Viewport Size: φ10mm*1mm (diameter 10mm * thickness 1mm)
9. Viewport Material: JGS2 quartz glass (transmission wavelength range: 220nm ~ 2500nm), manually
detachable and replaceable
10. Distance (h) from Upper Surface of Viewport to Upper Surface of Sample Stage: 7.5mm
11. Sample Chamber Height: 4.3mm
12. Chamber Type: Atmosphere-controlled chamber
13. External Dimensions: 165mm*78mm*32mm
14. Net Weight: 1.1kg
15. Basic Configuration: TCS, optical ultra-high temperature hot stage *1, temperature controller *1,
circulating water chiller *1, connecting wires, pipelines, accessories, etc.
16. Optional Accessories: Adapter plate / custom circulating water chiller / computer host / custom
temperature control software, etc.
