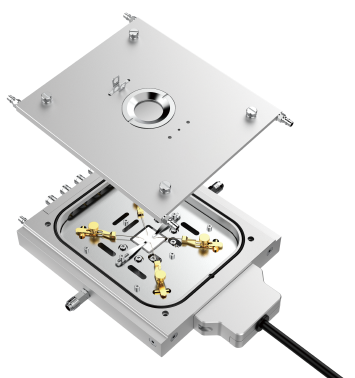

Ultra-high temperature probe station GXTEH1000

Ultra-high temperature probe station GXTEH1000

$0.00
$0.00
Sale Sold out

The temperature range of GXTEH1200 is RT~1000℃, with a temperature stability of ±0.1℃. It can achieve precise temperature control in program segments and operate stably for a long time under ultra-high temperatures.

 Product Features

  • Temperature range: RT~1000℃
  • Temperature stability: ±0.1℃
  • Supports reflection mode
  • High-precision temperature control
  • Professional temperature control software
  • Customization available
View full details

  • Product Specification

    Model：GXTEH1000
    1.Cooling / Heating:Resistive Heating
    2.Temperature Range:RT - 1000℃
    3.Temperature Stability:±0.1℃
    4.Temperature Control Rate:Max Heating Rate:150℃/min, Natural Cooling
    5.Sample Stage:Ceramic;20mm*20mm
    6.Optical Path:Reflective
    7.Top Window Size:φ25mm*1mm
    8.Bottom Window Size:φ10mm*1mm(optional for transmissive path)
    9.Window Material:JGS2 Quartz glass (Transmission 220nm - 2500nm), Manually removable and replaceable
    10.Distance from Window Surface to Sample Stage Surface (h):10mm
    11.Sample Chamber Height:9mm
    12.Probe:Fixed Probe4 + Tungsten probe or Tungsten - rhenium probe4
    13.Probe Interface:BNC*4
    14.Sample Stage Surface Potential:Grounded / Electrically Floating
    15.Chamber:Air - tight
    16.Dimensions:150mm*210mm*27mm
    17.Net Weight:1.6kg

  • Configuration List

    Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories

    Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
    PC / Custom temp software, etc
