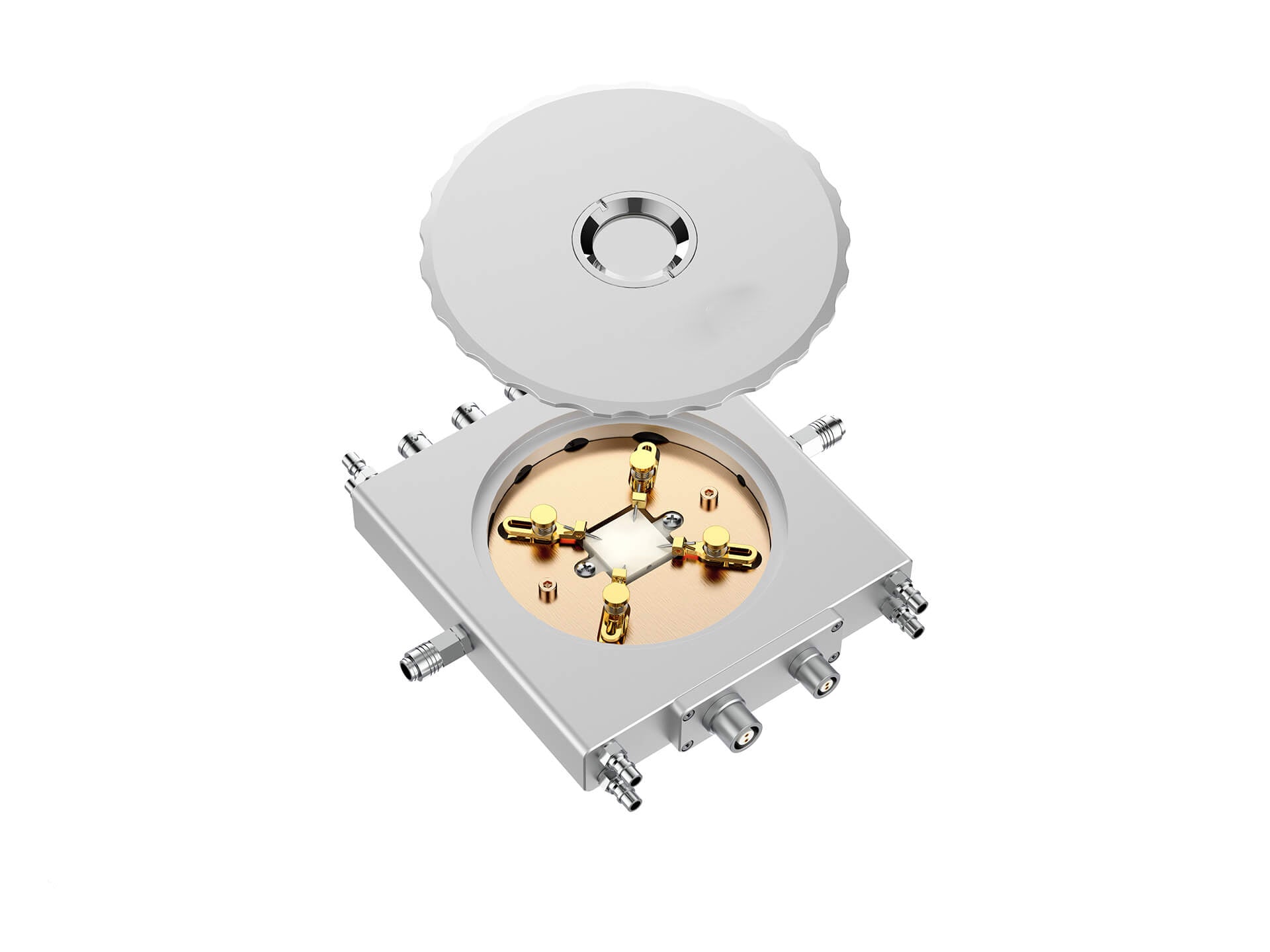

Ultra-High Temperature Probe Station GXTEH1000-HE
Ultra-High Temperature Probe Station GXTEH1000-HE
Couldn't load pickup availability
GXTEH1000-HE has a temperature range of RT~1000℃. The stage material is non-magnetic, making it suitable for Hall effect testing.
Product Features
- Temperature range: RT~1000℃
- Temperature stability: ±0.1℃
- Support for reflection mode
- High-precision temperature control
- Professional temperature control software
- Customization available
Share
-
Product Specification
Model：GXTEH1000-HE
1.Cooling / Heating：Resistive Heating
2.Temperature Range：RT~1000°C
3.Temperature Stability：+0.1°C
4.Temperature Control Rate：Max Heating Rate: 150°C/min, Natural Cooling
5. Sample Stage：Ceramic:20mm*20mm
6.Optical Path：Reflective
7.Top Window Size：φ25mm*1mm
8.Bottom Window Size：φ10mm*1mm (optional for transmissive path)
9.Window Material：JGS2 Quartz glass (Transmission 220nm-2500nm), Manually removable and replaceable
10.Distance from Window Surface to Sample Stage Surface：10.5mm
11.Sample Chamber Height：9.5mm
12.Probe：Tungsten-rhenium probe*4
13.Probe Interface：BNC*4
14.Sample Stage Surface Potential：Grounded / Electrically Floating
15.Chamber：Air-tight
16.Dimensions：120mm*120mm*25mm
17.Net Weight：0.6kg
-
Configuration List
Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories
Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
PC / Custom temp software, etc
