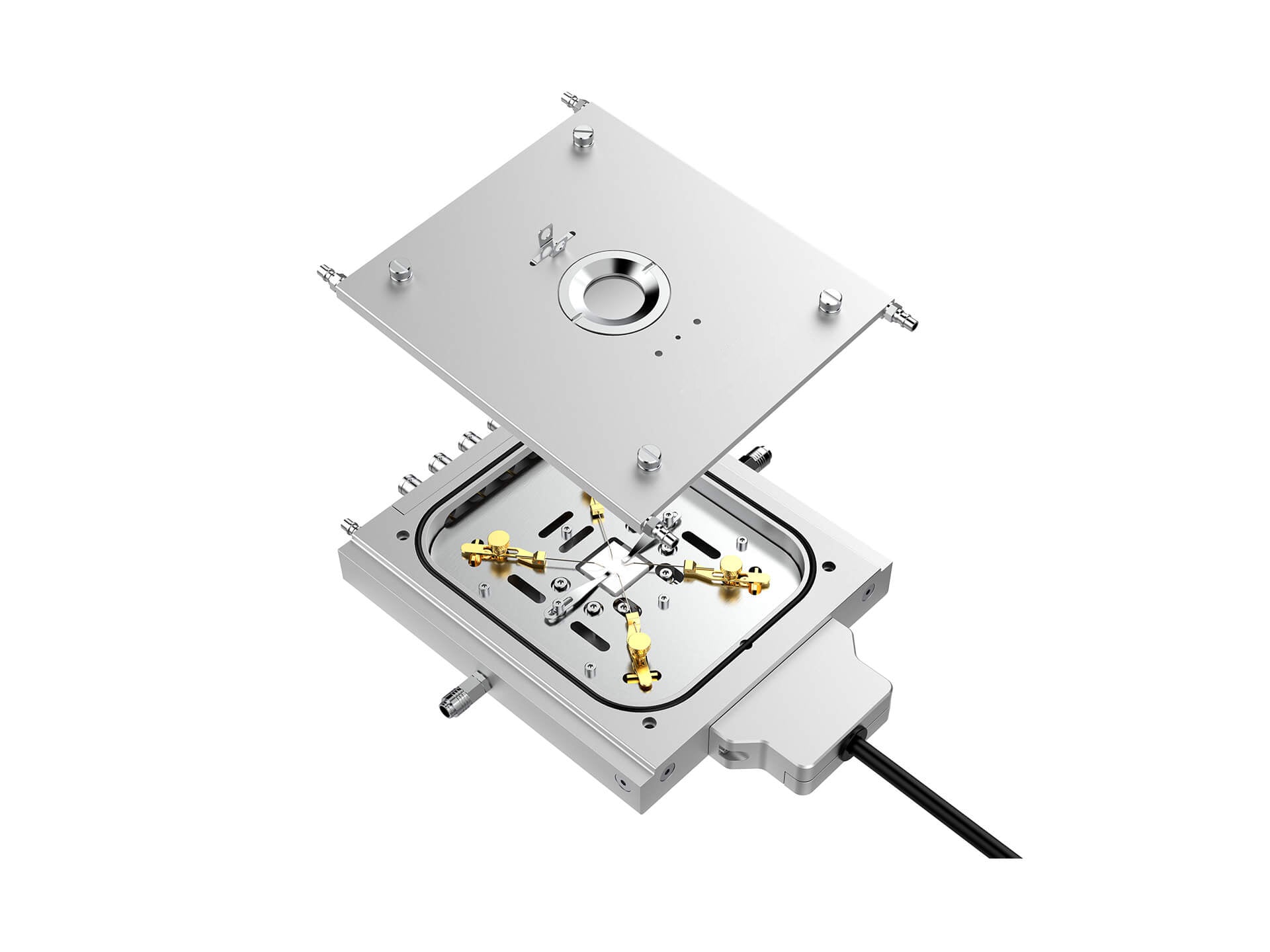

Ultra-High Temperature Probe Station GXTEH1200

Ultra-High Temperature Probe Station GXTEH1200

$0.00
$0.00
Sale Sold out

GXTEH1200 has a temperature range of RT~1200℃ with a temperature stability of ±0.1℃. It can achieve precise temperature control in program segments and operate stably for a long time at ultra-high temperatures.

 Product Features

  • Temperature range: RT~1200℃
  • Temperature stability: ±0.1℃
  • Support for reflection mode
  • High-precision temperature control
  • Professional temperature control software
  • Customization available
View full details

  • Product Specification

    Model：GXTEH1200
    1.Cooling / Heating：Resistive Heating
    2.Temperature Range：RT~1200°C
    3.Temperature Stability：+0.1°C
    4.Temperature Control Rate：Max Heating Rate: 150°C/min, Natural Cooling
    5.Sample Stage：Ceramic;20mm*20mm
    6.Optical Path：Reflective
    7.Top Window Size：φ25mm*1mm
    8.Bottom Window Size：φ10mm*1mm (optional for transmissive path)
    9.Window Material：JGS2 Quartz glass (Transmission 220nm-2500nm), Manually removable and replaceable
    10.Distance from Window Surface to Sample Stage Surface：10mm
    11.Sample Chamber Height：9mm
    12.Probe：Fixed Probe*4+Tungsten probe orTungsten-rhenium probe*4
    13.Probe Interface：BNC*4
    14.Sample Stage Surface Potential：Grounded / Electrically Floating
    15.Chamber：Air-tight
    16.Dimensions：150mm*210mm*27mm
    17.Net Weight：1.6kg

  • Configuration List

    Software| Stage| Temp Controller| Cooling Controller| LN2 Dewar| Chiller| Accessories

    Optional: Adapter plate / Custom LN2 dewar / Custom chiller / Vacuum system / Custom Probe / Custom Probe Interface/
    PC / Custom temp software, etc
